Stronger Signals, Smoother Communication
2 Years
| Ask Lasest Price | |
| Brand Name : | JIAYI |
| Model Number : | JY825 |
| Certification : | ul/FCC ID/UKCA/ ISED-Category l CE-RED(ELECTRIC) |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 99999 |
| Delivery Time : | 5-7 work days |
10W 40dbm Supper Power Cdma Optical Fiber Cell Phone Signal Booster Far-end Signal Strength Amplifier 94db
| Product Description |
1. Re
| Specification |
| Model | JY825 | ||
| Parameters of the project | Index requirements | ||
| Frequency Range | Uplink | Downlink | |
| 700MHz | 699-716MHz | 729-726MHz | |
| 850MHz | 824-849MHz | 869-894MHz | |
| 800MHz | 832-862MHz | 791-821MHz | |
| 900MHz | 880-915MHz | 925-960MHz | |
| 1700MHz | 1710-1755MHz | 2100-2155MHz | |
| 1800MHz | 1710-1785MHz | 1805-1880MHz | |
| 1900MHz | 1850-1910Mhz | 1930-1990MHz | |
| 2100MHz | 1920-1980MHz | 2110-2170MHz | |
| 2600MHz | 2500-2570MHz | 2620-2690MHz | |
| 2300MHz | 2300MHz | 2400MHz | |
| 2500Mhz | 2495MHz | 2695MHz | |
| 3500MHZ | 3300MHz | 4200MHz | |
| In-band intermodulation attenuation out-of-band (off-frequency) | S-36dBe/30Kz | ||
| 9KHz-1GHz<-36dBm/100kHlz | |||
| CSM/DCS | Strip edge 2.5y outside | 1GHz-12. 75GHz<-33dBm/IM2 | |
| Out-of-band inhibition of AB | 2.5 Ml f_offset < s < 5 Mz | > 40 | |
| 5 Mz Sf offset | > 60 | ||
| Maximum permissible input level (dBm | 10 | 10 | |
| Standing wave ratio of input and output voltage | S1.5 | ||
| Time delay (us) | < 5 | ||
| Time delay adjustment range (US) | > 100 | ||
| Optical power (JBm) | 9 | ||
| Light Receiving Sensitivity (DBM) | 20 | ||
| Light transmission distance (km) | > 20 | ||
| Power supply | Near and far end machine: AC220V±20%,50± 511Z | ||
| Size (mm) | Air coupling type proximal, distal: 460x380×180 | ||
| Weight (kg) | Coupled near end and far end machines: <20 | ||
| Monitor the way | RJ-45 | ||
| The work environment | 1, working environment temperature :-20℃~55℃; | ||
| 2, working environment humidity: 15% ~ 95% | |||
| 3 pressure: 70-106KP: | |||
| 4, protection level: waterproof and dustproof performance in line with the 1P65 standard | |||
Instructions

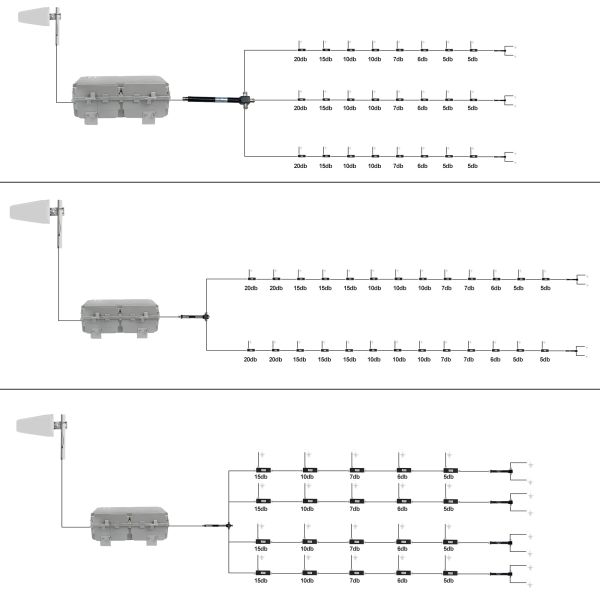

Installation Method:
1. Find the strongest direction and position of the received signal for mobiles at the top or the periphery of the building, as the location for installing the outdoor antenna, pay attention that the location should be paid to lightning protection.
The installation height should not be higher than the lightning protection network of the building. If it is higher than the lightning protection network. If it is necessary, install a lightning rod 1 meter above the outdoor antenna and ground it well.
2. After selecting the appropriate location, fix the outdoor antenna to the wall or bracket.
3. Select an appropriate location in the relevant indoor location (close to the power supply and the outdoor antenna end, rain-proof, sunshine-proof and ventilation is best location) install indoor straight machine, and fixed to the wall or bracket.
4. Lead the outdoor antenna to the 'BTS' (outdoor) interface, and the connection between the outdoor antenna and the amplifier is completed.
5. After defining the indoor antenna installation position, fix the antenna.
6. The indoor antenna connected to the amplifier, one port connecting to the indoor antenna interface, and the other port connecting to the repeater's 'MOBILE' (indoor) port.
|
|
