| Model Number : | JY-816 |
| Brand Name : | GREEMBLT |
| Supply Ability : | 1000 Piece/Pieces per Week |
| Price : | $78.60/sets 1-9 sets |

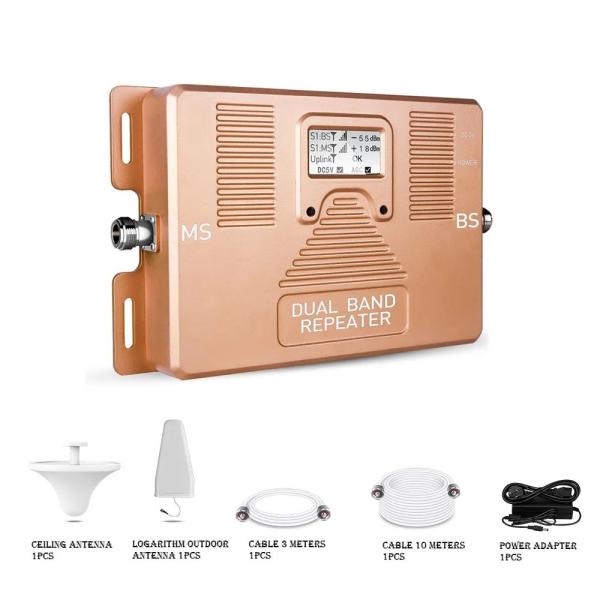

Custom Coverage Area 500m2 Dual Bands 850 AWS1700mhz Signal Booster for Mobile Network
| SPECIFICATIONS Mobile Signal Booser PARAMETERS | |||||
| 850/1800Mhz | 850/2100Mhz | 850/AWS | 800/900Mhz | 850/1900Mhz | |
| 824-849/1710-1785Mhz | 824-849/1920-1980Mhz | 824-849/1710-1755Mhz | 832-862/890-915Mhz | 824-849/1850-1910Mhz | |
| Frequency Range | 869-894/1805-1880Mhz | 869-894/2110-2170Mhz | 869-894/2110-2155Mhz | 791-821/935-960Mhz | 869-894/1930-1990Mhz |
| (Customers to Choose) | 800/1800Mhz | 900/1800Mhz | 900/2100Mhz | 1800/2100Mhz | 800/2100Mhz |
| 832-862/1710-1785Mhz | 890-915/1710-1785Mhz | 890-915/1920-1980Mhz | 1710-1785/1920-1980Mhz | 832-862/1920-1980Mhz | |
| 791-821/1805-1880Mhz | 935-960/1805-1880Mhz | 935-960/2110-2170Mhz | 1805-1880/2110-2170Mhz | 791-821/2110-2170Mhz | |
| Gain ≥70dB | |||||
| Automatic gain control (Step Attenuation) 31dB @1dB/Step | |||||
| MGC(Step Attenuation) 25dB @1dB/Ster | |||||
| Auto Gain Control 20dB Mir | |||||
| Output Power 22dBm | |||||
| ≤-15dBm/30kHz | |||||
| Spurious Emission 9kHz~1GHz:≤-36dBm/30kHz | |||||
| 1GHz~12.75GHz:≤-30dBm/30kHz | |||||
| Inter-Modulation Attenuation ACPR ≤-38dBc/30kHz(measured under rated output power) | |||||
| In-band Ripple ≤5dB | |||||
| VSWR <=2 | |||||
| /0 Impedance 50 Ω | |||||
| Noise Figure ≤5dB | |||||
| System Delay ≤5μs | |||||
| RF Connector(Customers to Choose) N-Type (Female) | |||||
| Operating Temperature Operation:-10°C~+55°C/Storage:-20°C~+60°℃ | |||||
| Power Supply AC110~220V±20%,50/60Hz,DC5V/2A power adapter | |||||
| Dimensions 225*140*32(mm) | |||||
| Weight ≤1.5kg | |||||
|
|
